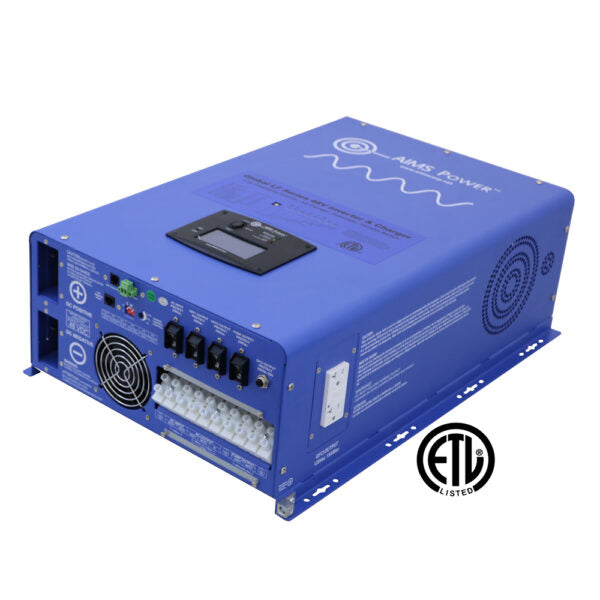

AIMS Power 8000 Watt Pure Sine Inverter Charger 48 Vdc / 240Vac Input & 120/240Vac Split Phase Output ETL Listed to UL 1741 - Reliable Backup Power
by AIMS Power
Save $560.00
Original Price
$4,480.00
Current Price
$3,920.00
AIMS Power 8000 Watt Pure Sine Inverter Charger
Are you ready for the next power outage? The AIMS Power 8000 Watt Pure Sine Inverter Charger is your ultimate solution for reliable backup power. Designed for preppers and off-grid enthusiasts, this inverter charger ensures you stay powered up when it matters most.
Why Choose AIMS Power?
This inverter charger is built to handle the demands of both residential and commercial applications. With a robust 8000 watts of continuous power and a staggering 24000 watts of surge capability, you can trust it to keep your essential devices running smoothly.
- ETL Listed to UL 1741 Standards for safety and reliability
- 48 Volt DC input for maximum efficiency
- Split-phase output for versatile use
- Marine-coated for protection against humidity and dust
- Multi-stage smart charger compatible with various battery types
Key Features
- Continuous Output Power: 8000 Watts
- Surge Rating: 24000 Watts (20 Seconds)
- Output Waveform: Pure Sine
- Nominal Efficiency: >88% (Peak)
- Three cooling fans for optimal performance
- Remote panel available for convenience
- Selectable 25W power save mode
- 2-year warranty for peace of mind
Technical Specifications
| Specification | Details |
|---|---|
| Continuous Output Power | 8000 Watts |
| Surge Rating | 24000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 7% under full linear load |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 48.0Vdc |
| Low Battery Alarm | 42.0Vdc-44.0Vdc |
| Low Battery Trip | 40.0Vdc-42.0Vdc |
| High Voltage Alarm | 64.0Vdc |
| Low Battery Voltage Restart | 62.0Vdc |
| Idle Consumption | 100 Watts |
| Power Saver Mode Idle Consumption | <25 Watts |
| Charger Rate | 80A |
| Unit Weight | 132 lbs. |
| Unit Size (L x W x H) | 23.3 x 16.3 x 7.9 inches |
| Shipping Weight | 176 lbs. |
| Shipping Size (L x W x H) | 30 x 21.25 x 15.25 inches |
Documentation
FAQs
-
Can this inverter charger be used for off-grid systems?
Yes, it's perfect for off-grid applications and emergency backup. -
What types of batteries can I use?
It supports GEL, Lead, AGM, and Lithium batteries. -
How does the power save mode work?
It reduces idle consumption to less than 25 watts when not in use.
Don't wait for the next blackout. Equip yourself with the AIMS Power 8000 Watt Pure Sine Inverter Charger and ensure your power needs are met, no matter the situation.
