AIMS Power 4000 Watt Pure Sine Inverter Charger - Reliable Backup Power

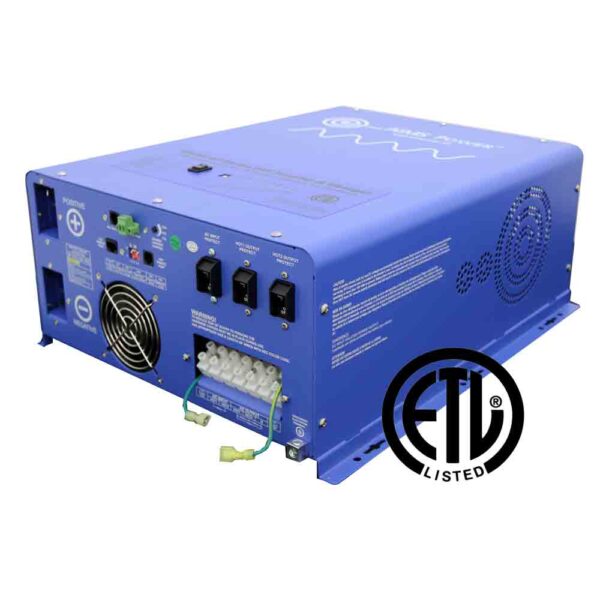

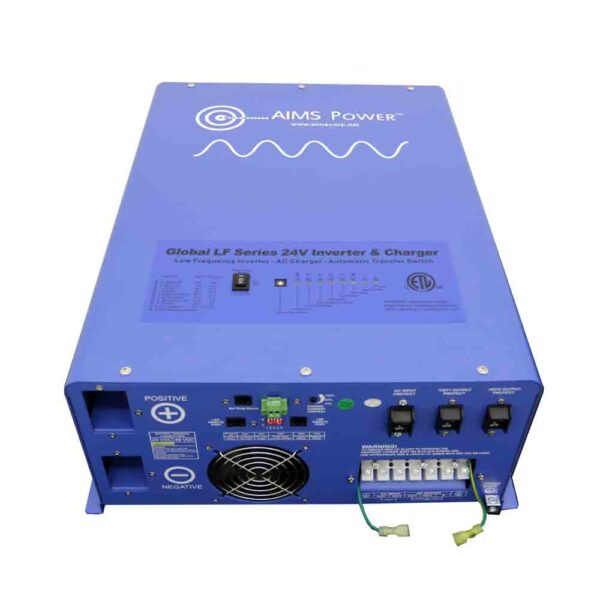

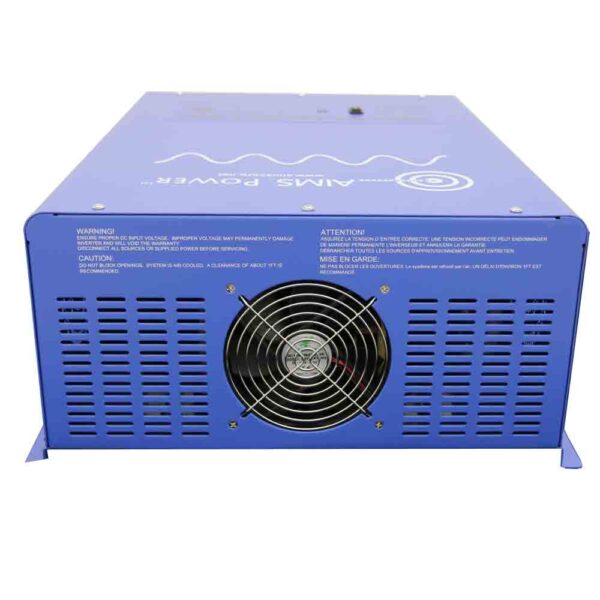

AIMS Power 4000 Watt Pure Sine Inverter Charger
Are you prepared for power outages or emergencies? The AIMS Power 4000 Watt Pure Sine Inverter Charger is your go-to solution for reliable energy, whether you're off-grid, in an RV, or need backup power for your business. This heavy-duty inverter charger ensures you have access to power when you need it most.
Why Choose AIMS Power?
This inverter charger is designed for those who demand performance and reliability. With a continuous output of 4000 watts and a surge capability of 12000 watts for 20 seconds, it can handle heavy loads with ease. Here’s what makes it stand out:
- Perfect for renewable solar setups, off-grid living, and emergency backup.
- Auto frequency detection for seamless operation at 50 or 60 hertz.
- Power saver mode to conserve battery life when not in use.
Key Features
- 4000 watt low frequency inverter
- 12000 watt surge for 20 seconds
- 24 Volt DC input
- Single phase 120Vac output
- Multi-stage smart charger with 45 Amp capacity
- Compatible with various battery types including lithium and AGM

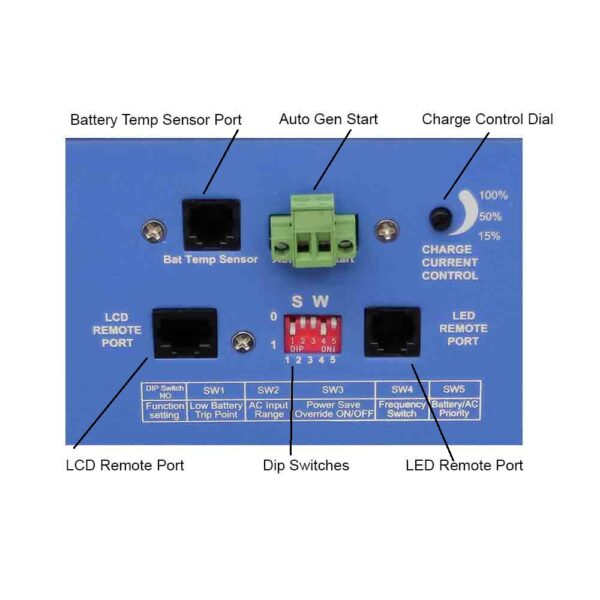

- Remote panel available for easy operation
- Automatic transfer switch for quick power restoration
Technical Specifications
| Specification | Details |
|---|---|
| Continuous Output Power | 4000 Watts |
| Surge Rating | 12000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Output Voltage | 100-110-120Vac |
| Output Breaker | 50 Amps |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 24.0Vdc |
| Minimum Start Voltage | 20.0Vdc |
| Low Battery Alarm | 21.0Vdc-22.0Vdc |
| Low Battery Trip | 20.0Vdc-21.0Vdc |
| High Voltage Alarm | 32.0Vdc |
| Low Battery Voltage Restart | 26.6Vdc |
| Idle Consumption | 52.5 watts |
| Idle Consumption with Power Saver Mode ON | <25 watts |
| Charger Rate | 45A |
| Over Charge Protection Shutdown | 31.4V |
| Unit Weight | 84 lb. |
| Shipping Weight | 88 lb |
| Unit Size (L x W x H) | 19 x 16.5 x 8 inches |
| Shipping Size (L x W x H) | 30.5 x 14.25 x 13.75 inches |
Resources
For more information, check out the following documents:
FAQs
-
Can this inverter charger work with solar panels?
Yes, it’s perfect for renewable solar setups. -
What kind of batteries can I use?
It supports lithium, gel, AGM, and lead batteries. -
How does the power saver mode work?
It conserves battery life by going into sleep mode when not in use.
Don't wait for the next blackout. Equip yourself with the AIMS Power 4000 Watt Pure Sine Inverter Charger and ensure your power needs are met, no matter the situation.
