AIMS Power 3000 Watt Pure Sine Inverter Charger 12V - Reliable Backup Power
by AIMS Power
Save $161.00
Original Price
$1,328.00
Current Price
$1,167.00

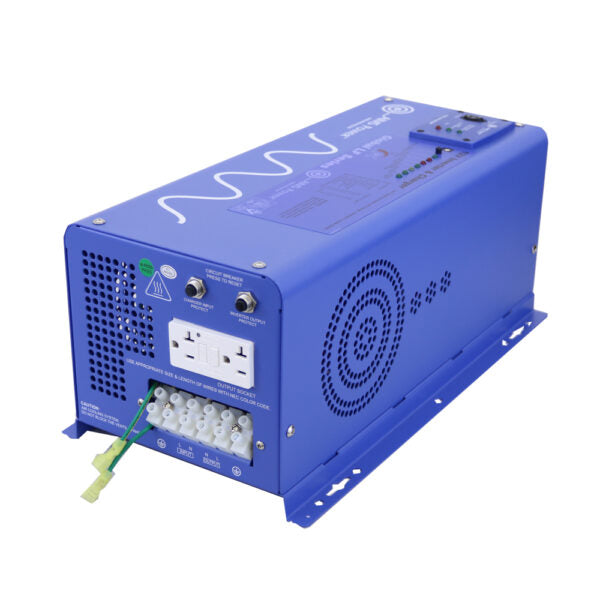

AIMS Power 3000 Watt Pure Sine Inverter Charger 12V
Are you prepared for unexpected power outages? The AIMS Power 3000 Watt Pure Sine Inverter Charger is your go-to solution for reliable backup power. This dual-function inverter not only converts DC power from your battery into usable AC electricity but also features a built-in 100 amp battery charger. Whether you're off-grid, camping, or need emergency power, this unit has you covered.
Why Choose the AIMS Power Inverter Charger?
Power outages can happen anytime, and having a dependable power source is crucial. With this inverter charger, you can:
- Run essential appliances like refrigerators and lights during outages
- Power tools and equipment for your mobile business
- Ensure your medical devices stay operational
- Safeguard your home from flooding with sump pump support
Key Features
- 3000 watt low frequency inverter for steady power
- 9000 watt surge capacity for 20 seconds to handle startup surges
- Battery priority selector to manage power efficiently
- GFCI protection for safe operation
- Marine-coated boards for durability in harsh environments
- Multi-stage smart charger compatible with various battery types
- Remote panel option for easy control
- Automatic transfer switch for uninterrupted power supply
Technical Specifications
| Specification | Details |
|---|---|
| Continuous Output Power | 3000 Watts |
| Surge Rating | 9000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| Bypass Terminal Breaker | 40 amps |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low Battery Trip | 10.0Vdc-10.5Vdc |
| High Voltage Alarm | 16.0Vdc |
| Low Battery Voltage Restart | 13.3Vdc |
| Charger Breaker | 30 amps |
| Idle Consumption | 55 Watts |
| Power Saver Mode Idle Consumption | 21.7 Watts |
| Output Voltage | Depends on battery Type |
| Charger Rate | 100A |
| Unit Weight | 58 lbs. |
| Shipping Weight | 64 lbs. |
| Unit Size (L x W x H) | 16.48 x 8.74 x 7.1 inches |
| Shipping Size (L x W x H) | 23.5 x 13.0 x 12.5 inches |
FAQs
-
Can I use this inverter for my medical equipment?
Yes, it produces a pure sine wave, making it suitable for sensitive devices like CPAP machines. -
How do I connect it to my battery bank?
Use the direct connect terminal block for optimal performance. -
What appliances can I run with this inverter?
You can power refrigerators, lights, tools, and more, but check wattage requirements first.
